弹力电揽卷筒滑环外装式

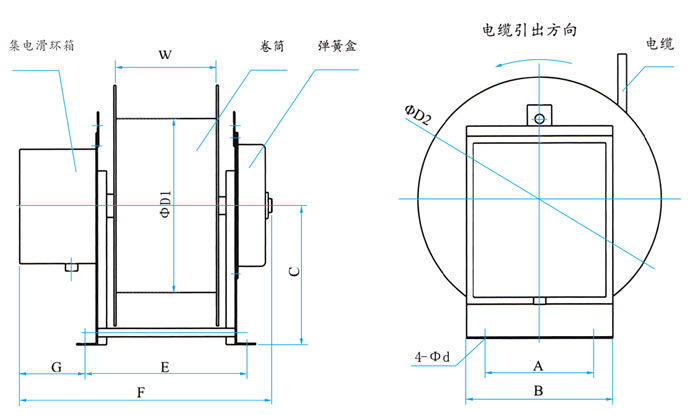

外形尺寸图

外形尺寸表（注：三条弹簧以下不带安装座）

外形序号尺寸		A	B	C	D1	D2	D	E	F	G	W	重量(kg)
15m、20m系列	1	310	360	400	500	700	15	420	700	190	250	140
	2							420	795	190	250	170
	3							470	845	190	300	220
	4							420	775	265	250	155
	5							420	870	265	250	185
	6							470	940	190	300	250
25m、30m系列	7	310	360	450	600	800	18	420	795	190	250	220
	8	310	360	450	600	800	18	470	845	190	300	250
	9	310	360	450	600	800	18	470	940	190	300	280
	10	310	360	450	600	800	18	470	920	265	300	260
	11	310	360	450	600	800	18	420	775	265	250	250
	12	310	360	450	600	800	18	420	770	190	250	220

选型主要事项：

1、本系列卷筒仅适应于第1页安装方式示意图中方式D，即卷筒安装在移动物体上。

2、50米及50米以上系列的电缆用户自备。

主要技术参数

电缆型号规格	允许电流 A（40℃时）		15m系列	外形序号	20m系列	外形序号	25m系列	外形序号	30m系列	外形序号
芯数×截面 (mm²)	连续	1分开 1分关
YC型 2×6	40		/	/	/	/	JTA50-25-2-II	1	/	/
			/		/		JTB50-25-2-II		/
YC型 2×10	58		JTA75-15-2-II	1	JTA75-20-2-II	1	JTA75-25-2-II	1	JTA75-30-2-II	7
			JTB75-15-2-II		JTB75-20-2-II		JTB75-25-2-II		JTB75-30-2-II
YC型 2×16	77		JTA100-15-2-II	1	JTA100-20-2-II	2	JTA100-25-2-II	2	JTA100-30-2-II	8
			JTB100-15-2-II		JTB100-20-2-II		JTB100-25-2-II		JTB100-30-2-II
YC型 2×25	106		JTA135-15-2-II	3	JTA135-20-2-II	3	JTA135-25-2-II	3	JTA135-30-2-II	9
			JTB135-15-2-II		JTB135-20-2-II		JTB135-25-2-II		JTB135-30-2-II
YC型 2×35	132		JTA170-15-2-II	3	JTA170-20-2-II	3	JTA170-25-2-II	6	/	/
			JTB170-15-2-II		JTB170-20-2-II		JTB170-25-2-II		/
YC型 3×6+1×4	35		JTA50-15-4-II	1	JTA50-20-4-II	1	JTA50-25-4-II	1	JTA50-30-4-II	7
			JTB50-15-4-II		JTB50-20-4-II		JTB50-25-4-II		JTB50-30-4-II
			JTC50-15-4-II		JTC50-20-4-II		JTC50-25-4-II	1	JTC50-30-4-II
			JTD50-15-4-II		JTD50-20-4-II		JTD50-25-4-II		JTD50-30-4-II	12
			JTE50-15-4-II		/		JTE50-25-4-II	1	JTE65-30-4-II	7
			JTF50-15-4-II		/		JTF50-25-4-II		JTF65-30-4-II
YC型 3×10+1×6	50		JTA65-15-4-II	1	JTA65-20-4-II	1	JTA65-25-4-II	2	JTA65-30-4-II	8
			JTB65-15-4-II		JTB65-20-4-II		JTB65-25-4-II		JTB65-30-4-II
			JTC65-15-4-II		JTC65-20-4-II	1	JTC65-25-4-II	1	JTC65-30-4-II	8
			JTD65-15-4-II		JTD65-20-4-II		JTD65-25-4-II		JTD65-30-4-II	12
			JTE65-15-4-II	1	JTE65-20-4-II	2	JTE65-25-4-II	3	JTE65-30-4-II	9
			JTF65-15-4-II		JTF65-20-4-II		JTF65-25-4-II		JTF65-30-4-II
YC型 3×16+1×6	66		JTA85-15-4-II	1	JTA85-20-4-II	2	JTA85-25-4-II	3	JTA85-30-4-II	9
			JTB85-15-4-II		JTB85-20-4-II		JTB85-25-4-II		JTB85-30-4-II
			JTC85-15-4-II	1	JTC85-20-4-II	1	JTC85-25-4-II	3	JTC85-30-4-II	8
			JTD85-15-4-II		JTD85-20-4-II		JTD85-25-4-II		JTD85-30-4-II	8
			JTE85-15-4-II	2	JTE85-20-4-II	2	JTE85-25-4-II	6	JTE85-30-4-II	9
			JTF85-15-4-II		JTF85-20-4-II	2	JTF85-25-4-II		JTF85-30-4-II
YC型 3×25+1×10	91		JTA120-15-4-II	2	JTA120-20-4-II	2	JTA120-25-4-II	6	JTA120-30-4-II	/
			JTB120-15-4-II		JTB120-20-4-II		JTB120-25-4-II		JTB120-30-4-II
			JTC120-15-4-II	1	JTC120-20-4-II	2	JTC120-25-4-II	3	JTC120-30-4-II	8
			JTD120-15-4-II	2	JTD120-20-4-II		JTD120-25-4-II		JTD120-30-4-II
			JTE120-15-4-II	2	JTE120-20-4-II	2	/ /		/	/
			JTF120-15-4-II		JTF120-20-4-II				/
CRHF型 10×2.5	12		JTA20-15-8-II	4	JTA20-15-8-II	4	JTA20-25-8-II	4	JTA20-30-8-II	10
			JTB20-15-8-II		JTB20-15-8-II		JTB20-25-8-II		JTB20-30-8-II
			JTC20-15-8-II		JTC20-15-8-II		JTC20-25-8-II		JTC20-30-8-II	11
			JTD20-15-8-II		JTD20-15-8-II		JTD20-25-8-II		JTD20-30-8-II
			JTE20-15-8-II	4	/		/		/	/
			JTF20-15-8-II		/		/		/
